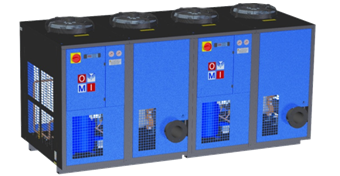

| Modell Model |
Artikelcode Article code |
Volumenstrom Flow-rate |
Max. Druck Max. pressure |
Anschlüsse Connections |
Leistungsaufnahme Power Consumption |
||
| l/min | m³/h | CFM | bar | BSP | kW | ||
| ED 8800 | 08L.8800AG0.00B1 | 146.667 | 8.800 | 5.176 | 13 | DN 150 | 14,96 |
| ED 10000 | 08L.A100AG0.00B1 | 166.667 | 10.000 | 5.882 | 13 | DN 200 | 14,96 |
| ED 12000 | 08L.A120AG0.00B1 | 200.000 | 12.000 | 7.059 | 13 | DN 200 | 18,16 |
| ED 13600 | 08L.A136AG0.00B1 | 226.667 | 13.600 | 8.000 | 13 | DN 200 | 22,32 |
| ED 17600 | 08L.A176AG0.00B1 | 293.334 | 17.600 | 10.353 | 13 | 2xDN 200 | 29,92 |
| ED 20000 | 08L.A200AG0.00B1 | 333.334 | 20.000 | 11.765 | 13 | 2xDN 200 | 29,92 |
| ED 24000 | 08L.A240AG0.00B1 | 400.000 | 24.000 | 14.118 | 13 | 2xDN 200 | 36,32 |
| Modell Model |
Abmessungen [mm] Dimensions [mm] |
Gewicht Weight |
||||||||
| A | B | C | D | E | F | G | H | I | kg | |
| ED 8800 | 2.270 | 1.500 | 1.570 | 825 | 1.335 | 645 | - | - | - | 1.080 |
| ED 10000 | 2.270 | 1.590 | 1.570 | 825 | 1.335 | 645 | - | - | - | 1.150 |
| ED 12000 | 2.270 | 1.590 | 1.565 | 825 | 1.335 | 645 | - | - | - | 1.230 |
| ED 13600 | 3.025 | 1.590 | 1.565 | 825 | 1.335 | 645 | - | - | - | 1.350 |
| ED 17600 | 4.535 | 1.590 | 1.570 | 825 | 1.335 | 645 | 1.335 | - | - | 2.160 |
| ED 20000 | 4.535 | 1.590 | 1.570 | 825 | 1.335 | 645 | 1.335 | - | - | 2.300 |
| ED 24000 | 4.535 | 1.590 | 1.565 | 825 | 1.335 | 645 | 1.335 | - | - | 2.460 |
| Betriebsdruck | ||||||||||||||||||||
| [bar] | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | … | 20 | 25 | 30 | 35 | 40 |
| F1 | 0,70 | 0,78 | 0,85 | 0,93 | 1 | 1,06 | 1,11 | 1,15 | 1,18 | 1,20 | 1,22 | 1,24 | 1,25 | 1,26 | … | - | - | - | - | - |
| Drucklufteintrittstemperatur | ||||||||||||
| [°C] | +30 | +35 | +40 | +45 | +50 | +55 | +60 | +65 | +70 | +75 | +80 | +82 |
| F2 | 1,20 | 1 | 0,85 | 0,71 | 0,58 | 0,49 | - | - | - | - | - | - |
| Umgebungstemperatur | ||||||||
| [°C] | +15 | +20 | +25 | +30 | +35 | +40 | +42 | +45 |
| F3 | - | - | 1 | 0,96 | 0,92 | 0,88 | 0,85 | 0,80 |
| Drucktaupunkt | |||||||||
| [°C] | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| F4 | 1 | 1,04 | 1,09 | 1,14 | 1,18 | 1,25 | 1,3 | 1,33 | - |
| Standardbedingungen | |
| Umgebungstemperatur: | +25 °C (+45 °C max.) |
| Arbeitsdruck: | 7 bar |
| Eintritt Lufttemperatur: | +35 °C (+55 °C max.) |
| Taupunkt: | ≤ +3 °C (Klasse 4) |
| Netzanschluss: | 3/PE ~ 400 V 50 Hz |
Download Datenblatt »Easy-Dry_Druckluft-Kaeltetrockner_ED8800-24000.pdf«
