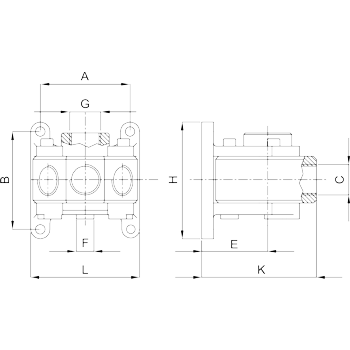

| Artikelcode Article code |
G |
C |
H |
E |
K |
A |
B |
L |
F |
Anzahl Quantity |
| mm | mm | mm | mm | mm | mm | mm | mm | BSP | n° | |
| 09P.AP3F.G05.G04 | 3/4" | 1/2" | 81 | 45 | 75 | 60 | 67 | 74 | 1/4" | 2 |

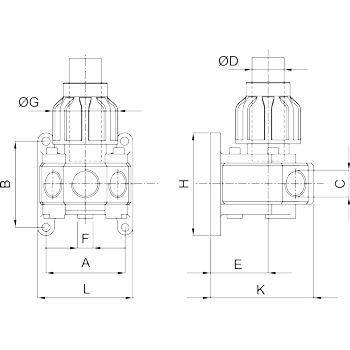

| Artikelcode Article code |
ØG |
ØD |
C |
H |
E |
K |
A |
B |
L |
F |
Anzahl Quantity |
| mm | mm | BSP | mm | mm | mm | mm | mm | mm | BSP | n° | |
| 09P.AP3T.020.G04 | 43 | 20 | 1/2" | 81 | 45 | 75 | 60 | 67 | 74 | 1/4" | 2 |
| 09P.AP3T.025.G04 | 52 | 25 | 1/2" | 81 | 45 | 75 | 60 | 67 | 74 | 1/4" | 2 |

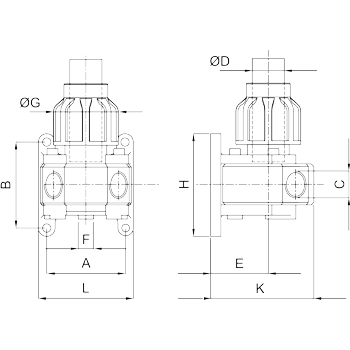

| Artikelcode Article code |
ØG |
ØD |
C |
H |
E |
K |
A |
B |
L |
F |
Anzahl Quantity |
| mm | mm | BSP | mm | mm | mm | mm | mm | mm | BSP | n° | |
| 09P.AP2T.020.G04 | 20 | 1/2" | 43 | 81 | 45 | 75 | 60 | 67 | 74 | 1/4" | 2 |
| 09P.AP2T.025.G04 | 25 | 1/2" | 52 | 81 | 45 | 75 | 60 | 67 | 74 | 1/4" | 2 |
| Standardbedingungen | |
| Betriebstemperatur: | -10 °C bis +60 °C |
| Technische Standards: | ISO 228/1, DIN 2999, UNI 338, BS 21 |
Download Datenblätter »Alu-Rohrleitungssystem.pdf«
